mini fpv drone with goggles ☆ Tinyhawk RTF Kit - With Controller & Goggles

Key Features:

• 75mm Indoor racing drone

• 08025 brushless motor with durable ball bearing for increase flight and low maintenance

• Durable polypropylene plastic frame with propeller guards

• Motor beeper function. Find your tinyhawk after a crash

• Speeds up to 56kph

• Up to 4 minutes flight time on single battery

• Fast F4 Processor for smooth stable flight characteristics

• MPU6000 gyro for vibration free operations

• Unique inverted motor design to keep CG as low as possible to fit in the smallest of spaces

• 25mw VTX and 600tvl Camera included for fun FPV flight via FPV style goggles

• Smart Audio function to change VTX channel via your transmitter

• OSD settings control to customize flight feel

• Pre-tuned from factory with expert pilots and new pilots in mind. 3 rate profile settings for all types of flying feel

• Plug in type motors for easy maintenance

• 1s High Voltage (HV) 450mah lipo included

• 40 Channel goggles for FPV (First Person View) be like a bird, or pilot.

• 6 Channel gamepad size controller. Feel comfortable, like it playing a video game

• Everything included in one package, no need for extra to get in the air out of the box.

• Frsky compatible D8 receiver built in to FC

• Custom carbon fiber themed carrying case

Tinyhawk Specifications:

• Size: 75mm motor to motor L 110mm x W 95mm x H 39mm

• Dry Weight: 29g

• All Up Weight: 42g with 450mah 1s Battery

• Frame Material: Polypropylene

• Propeller Properties:

• Diameter: 40mm

• Blades: 3

• Pitch: 23mm

• Weight: 0.5 g

• Motor Properties;

• Stator: 8mm x 2.5mm (08025)

• Kv: 15000kv

• Weight: 2.5g

• Bearing Size: Φ1.5*Φ4*2mm

• Shaft Diameter:  Φ1.5mm

• Propeller Mount: Press Fit Over Bell

• Main PCB:

• Flight Controller: F4（MATEKF411 firmware）

• ESCs: 4in1 3A

• Receiver: EMAX Tiny receiver (Compatible with Frsky D8 mode)

• Battery Connector: JST-PH2

• Camera and VTX:

• VTX Power: 25mw

• Channels: 37CH

• Camera Properties: 600TVL CMOS

• Smart Audio

• Battery:

• Voltage: 1s 4.35v HV

• Capacity: 450 mAh

• Discharge rating: 80c/160c

EMAX Transporter Goggles Specifications:

• Maximum appearance size 140×153×90(mm)

• Weight (without battery) 398g

• Resolution 480×272

• Battery 1 cell 18650 lipo battery

EMAX E6 Transmitter Specifications:

• Maximum appearance size 181×213×80(mm)

• Weight (without battery) 211g

• Number of channels 6 Channels

• Transmission frequency 2.4GHz ISM Band（2400MHz~2483.5MHz）

• Output Power 22dbm

• Modulation GFSK

• Battery 1 cell 18650 lipo battery

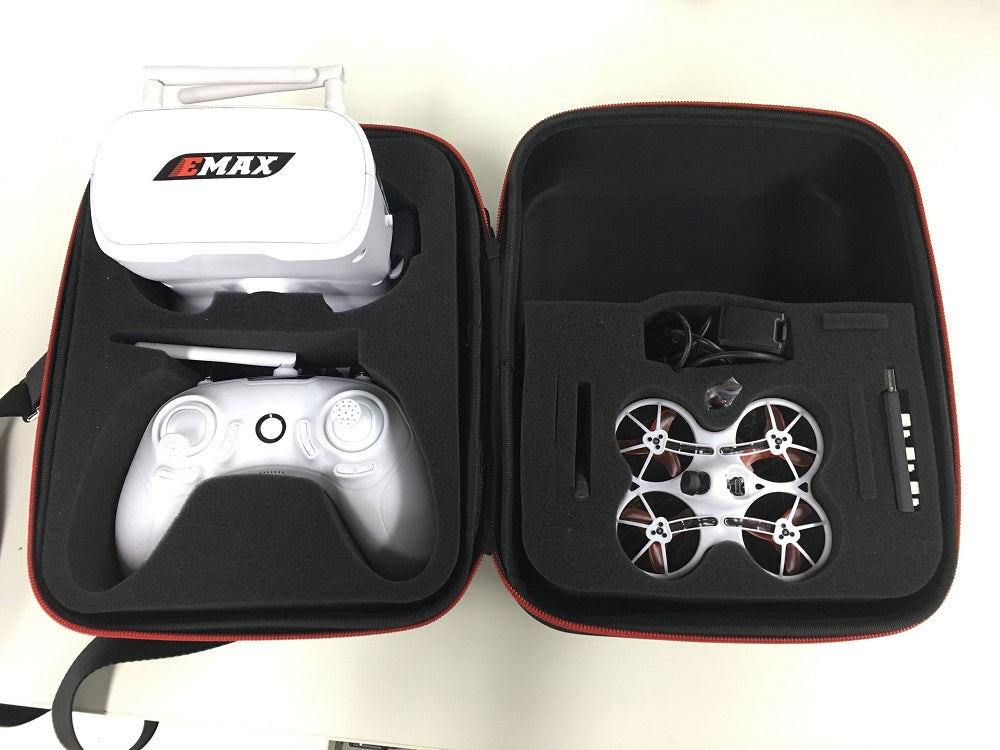

Included in package:

• Light weight soft carry case, with carbon fiber design

• Tiny Hawk indoor flying drone

• USB High Voltage capable 4 port USB Charger

• 1s High Voltage (HV) 450mah lipo battery.

• FPV Goggle: EMAX Transporter 40 channel

• EMAX E6 Transmitter: 6 Channel

• USB Cable for charging goggle, radio

• Parts Bag

• Phillips screwdriver

• 2x 18650 Battery already pre-installed

• 1 Set spare AVAN Tinyhawk 3 blade propellers.
